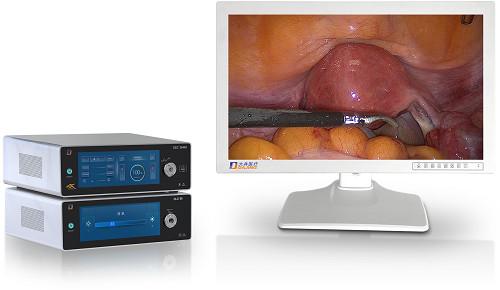

DEC 3840A New 4K Ultra HD Medical Endoscope Camera System For Laparoscopy

Product Categories
Hengyang Dajing Medical Devices Technology Co., Ltd.
Contact Now

DEC 3840A New 4K Ultra HD Medical Endoscope Camera System For Laparoscopy

Brand Name : DAJING

Model Number : DEC 3840A

Certification : ISO13485

Place of Origin : China

MOQ : 1 SET

Payment Terms : T/T, Western Union, Credit Card

Supply Ability : 100/month

Delivery Time : 30 Days

Packaging Details : Carton

Touch Screen : 10.2"

Color Gamut : BT.2020

Image Processing Chips : Built-in 4 FPGA

Effective Pixels : 3840(H) x 2160(V) 60Hz

Exposure : Auto/Manual

Output Signal : 4K: HDMI, 12G SDI, 3G SDI*4; FHD: DVI, 3G SDI*1

Recording function : Support U disk or mobile hard disk for 1080P recording

Power Supply : AC100-240V 50/60 Hz

Contact Now

DEC 3840A New 4K Ultra HD Medical Endoscope Camera System For Laparoscopy

Product Features

1. Wider color gamut: BT. 2020, the color of the surgical image is more distinct.
2. Video output: HDMI, 12G SDI (anyone of SDI 1-4), 3G SDI*4 for 4K output; DVI, SDI for FHD output
3. Built-in 4 FPGA image processing chips: With 4 chips, the camera can realize automatic algorithm switching to meet the needs of different surgical scenes, and all of theses scenes are presented with 4K image quality.
4. Full-chain 60fps: The picture is very smooth and the display is free of trails.
5. Adaptive algorithm for bleeding mode: Surgical images remain clear in bleeding scenes
6. Built-in USB for recording: Archiving surgical pictures to meet the needs of clinical teaching
7. 10.2-inch touch screen: When the monitor fails, it can be used as an emergency secondary display screen; When the camera host fails partially, it can still display the operation picture. Perfect contingency plan.

Applications
DEC 3840A can be used for hysteroscopy, laparoscopy, proctoscopy, arthroscopy, ENT, PTED (percutaneous transluminal endoscopic excision), ventriculoscopy, ductoscopy etc.
DEC 3840A 4K Ultra HD Camera System
Touch Screen 10.2-inch
Image Sensor 1/1.8'' Sony IMX334 CMOS Sensor
Unit Cell Size 2 umx2 um
Effective Pixels 3840(H) x 2160(V) 60Hz
Resolution 1800TVL
Photometry Average, peak and area photometry
Exposure Auto/Manual
S/N >54dB
Image Gamma 0.45, 0.55, 0.65, 0.75
Shutter Auto range 1/50-1/4000
AGC 0-20dB Adjustable
Lens Mount C-Mount
Scanning Mode Progressive
Illumination Ref 3000k-8000k
Min.Sensitivity 20LxF1.4
Waterproof Camera Head IPX7 waterproof
Transmission 12G-SDI 75Ω
Output Signal DVI,SDI-5: 1920(H)×1080(V);
HDMI,SDI-1, SDI-2,SDI-3,SDI-4:
3840(H)×2160(V)and 1920(H)×1080(V)Dual-resolution output
Recording function Support U disk or mobile hard disk for 1080P recording
Video storage format MP4 format for H.264/H.265 ENCODING STORAGE
White Balance Manual
Language Chinese,English
Handle Button Picture, Video, White balance
Working Temperature 0℃ ~+40℃
size: Handle: 32mm*32*mm*80mm
Processor: 335mm*400mm*143mm
Power Supply AC100-240V 50/60 HZ
weight 11kg

DEC 3840A New 4K Ultra HD Medical Endoscope Camera System For LaparoscopyDEC 3840A New 4K Ultra HD Medical Endoscope Camera System For LaparoscopyDEC 3840A New 4K Ultra HD Medical Endoscope Camera System For Laparoscopy
